3D laser scanning has revolutionized numerous industries, from surveying and construction to historical preservation and entertainment. This technology allows for the rapid, high-precision capture of physical objects and environments, transforming them into digital formats that can be manipulated, analyzed, and integrated into complex workflows. Understanding how 3D laser scanning works, the specific land survey techniques involved, and the specialized equipment utilized provides valuable insight into the immense accuracy and efficiency this technology offers to modern projects.
This professional overview delves into the intricacies of 3D laser scanning, exploring its fundamental principles, sophisticated methodologies, and practical applications. When asking, “What tools does a land surveyor use?” the answer increasingly centers on light in the form of pulsed lasers. This industry shift has moved beyond traditional manual measurements, allowing for a level of detail that was previously impossible to achieve using standard land survey techniques.
The Core Principles of 3D Laser Scanning
At its core, 3D laser scanning serves as a vital component of modern land survey techniques. The system operates by emitting laser beams onto an object or an entire environment. These beams reflect back to the scanner’s sensor, which then calculates the distance based on the exact time it takes for the light to return. This calculation is performed millions of times per second, resulting in a dense “point cloud.”

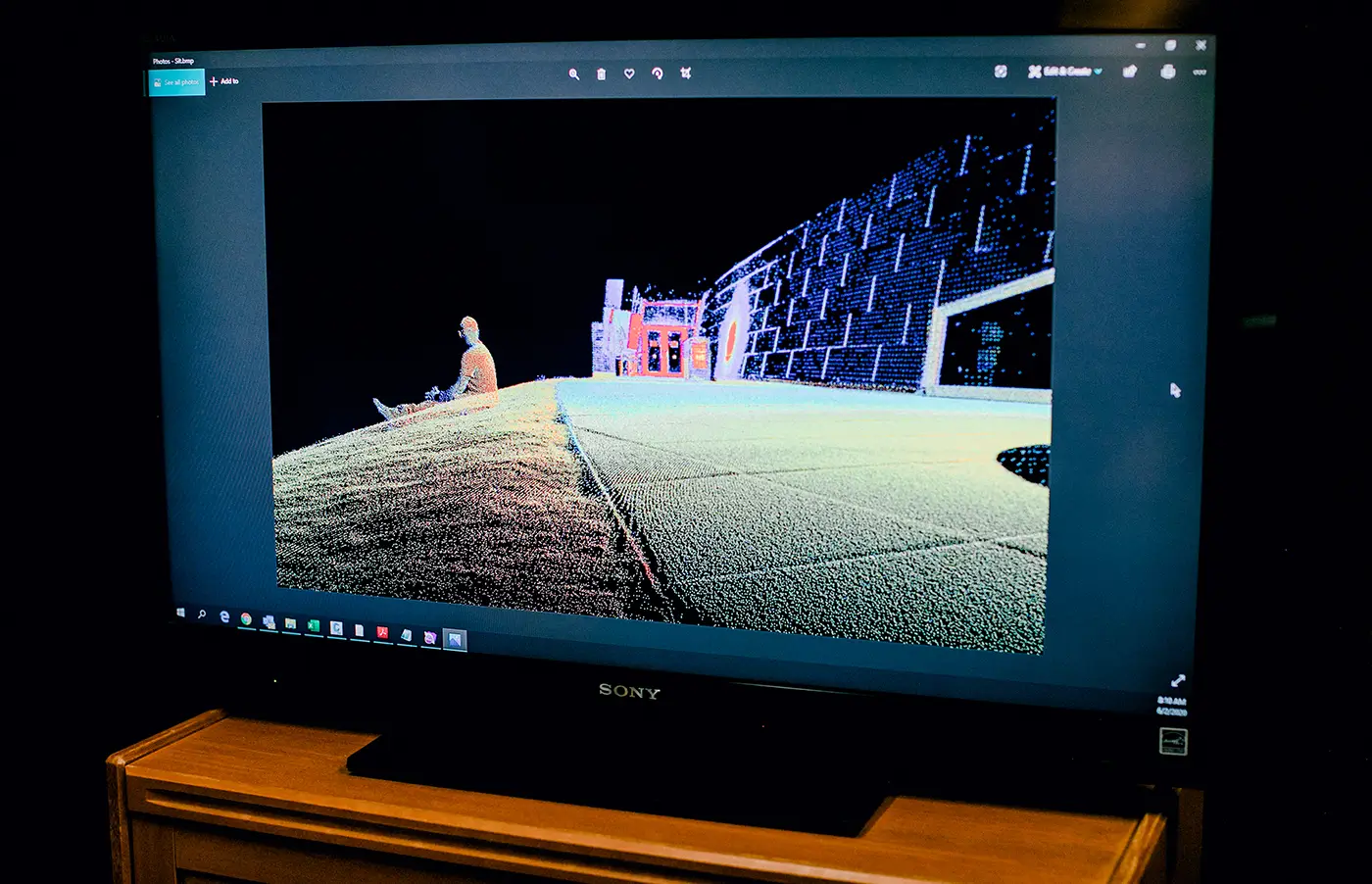

A point cloud is a massive collection of data points plotted within a three-dimensional coordinate system ($X$, $Y$, and $Z$). Each individual point represents a specific, measurable location on the scanned surface. When these millions of points are viewed together, they form a highly accurate digital representation of the scanned area, capturing everything from minute structural details to vast topographical changes.
Time-of-Flight vs. Phase-Shift Laser Scanning
There are two primary methods employed in the hardware used for 3D laser scanning: time-of-flight and phase-shift. Each method has specific strengths depending on the site requirements and the topographical survey equipment being utilized. Determining what tools a land surveyor uses for long-range versus short-range accuracy often leads to selecting one of these two laser technologies.
Time-of-Flight Scanners: Also known as “pulse” scanning, this method measures the time it takes for a laser pulse to travel to a surface and back. It is the preferred choice for long-range applications, such as surveying expansive landscapes or civil infrastructure projects where high-end topographical survey equipment is necessary.
Phase-Shift Scanners: This method measures the phase difference between emitted and received laser waves. These scanners are generally faster and more precise for short-range applications, making them the standard for detailed interior mechanical, electrical, and plumbing (MEP) documentation.
Detailed Breakdown of the 3D Laser Scanning Process
The implementation of 3D laser scanning involves several key steps that must be executed with precision to maximize data effectiveness and its subsequent use in advanced land survey techniques.
1. Planning and Preparation
Before commencing, professionals must identify potential challenges, such as reflective surfaces (glass or polished metal) that can refract laser light. During this stage, the team determines the optimal placement of topographical survey equipment to ensure maximum coverage with the fewest number of scanner setups. This reduces “shadowing”—areas where the laser is blocked by obstacles—and streamlines the subsequent data merging process.
2. Data Acquisition
During the acquisition phase, the scanner is positioned strategically. If the field team does not understand what tools a land surveyor uses to stabilize and calibrate the equipment—such as leveling bases and prism sets—the resulting data may contain errors. High-quality acquisition is the backbone of effective land survey techniques, providing the raw material for analysis.
3. Registration and Processing
Once field data is collected, multiple scans must be “registered” together. This aligns overlapping data from different positions into a single, cohesive 3D environment. Specialized software identifies common geometry or artificial targets, such as spheres or checkerboards, to lock the scans into place.
What Tools Does a Land Surveyor Use?
The equipment used in 3D laser scanning is highly specialized. When clients ask what tools a land surveyor uses, they are often surprised by the diversity of technology involved:
- Terrestrial Laser Scanners (TLS): Ground-based scanners typically mounted on high-stability tripods. They provide the highest level of accuracy for buildings and industrial plants.
- Handheld Laser Scanners: Portable devices used to scan smaller objects or navigate confined spaces. When considering, “what tools does a land surveyor use for complex machinery or tight utility tunnels,” handhelds are often the top choice.
- Mobile Laser Scanners: Mounted on vehicles or backpacks, these allow for rapid data collection while moving. This is the primary topographical survey equipment used for miles of highway or rail corridor mapping.
- Aerial Laser Scanners (LiDAR): Scanners mounted on drones or aircraft can map entire sections of a city or rugged wilderness in hours.
Essential Accessories and Field Gear
In addition to the scanner, several accessories are required for precision:
- Reflective Targets: Spheres and checkerboards that serve as common reference points.
- GNSS Receivers: Global Navigation Satellite System receivers tie scan data to real-world coordinates ($X, Y, Z$ and Latitude/Longitude).
- Data Storage and Field Controllers: High-speed rugged tablets used to monitor scan progress in real-time. To understand what tools a land surveyor uses for complex data management, these field computers are vital.
Enhancing Project Safety and Efficiency
One of the most significant benefits of modern scanning is its impact on field safety. When analyzing, “what tools does a land surveyor use to mitigate risk,” the laser scanner is a primary asset. Traditional surveying often required crews to enter confined spaces or stand near active traffic; 3D laser scanning allows for “remote sensing,” capturing every detail from a safe distance.
Furthermore, the technology ensures project efficiency. Because the scanner captures everything in its line of sight, the “as-built” data is preserved digitally, eliminating the need for crews to return to the site if a measurement was missed. This reliability is a hallmark of sophisticated land survey techniques.
Quality Control and Clash Detection
In the construction phase, 3D scanning acts as a quality control auditor. By scanning at various intervals—after foundations are poured or steel is erected—project managers can perform “clash detection.” This involves overlaying the 3D scan data (reality) with the original architectural design (the plan).
If a plumbing pipe is installed slightly off-location, it might “clash” with future HVAC ductwork. Discovering this digitally via topographical survey equipment before components arrive on-site saves thousands of dollars in rework. When a general contractor asks what tools a land surveyor uses to keep a project on budget, they are often referring to this real-time error detection.
The Integration of 3D Data Into Civil Engineering
The integration of 3D data into civil engineering has redefined infrastructure design. When examining “what tools does a land surveyor use for large-scale earthworks,” the combination of terrestrial scanning and aerial LiDAR is unbeatable. By creating an accurate digital terrain model (DTM), engineers can calculate “cut and fill” volumes with precision, lowering both environmental impact and site preparation costs.
Modern land survey techniques also allow for monitoring structural deformation. By scanning a bridge or dam annually, engineers can detect subtle shifts that may indicate structural fatigue. When public safety officials ask what tools a land surveyor uses to ensure the longevity of our infrastructure, they are looking at the comparison models generated by sequential 3D scans.
Visual Communication and Stakeholder Engagement
Explaining complex spatial concepts to non-technical stakeholders is a significant hurdle in development. 3D scanning provides the ultimate visual aid. By converting a point cloud into a photo-realistic 3D rendering, a surveyor can give investors a virtual tour of a proposed site.
When a developer asks what tools a land surveyor uses to win public approval, the answer is often the visualization software behind the scanner. These high-fidelity models show exactly how a new building will impact sightlines and sunlight, building trust and streamlining the permitting process.
Reverse Engineering for Industrial Upgrades
In older industrial facilities where original blueprints may be lost, 3D laser scanning is essential for reverse engineering. By scanning existing equipment, engineers can create accurate CAD models for parts no longer in production.
If a factory needs to replace a custom boiler, the question of what tools a land surveyor uses to replicate that geometry is answered by high-precision phase-shift scanners. These capture every bolt hole and flange position, ensuring new parts fit perfectly the first time and keeping the facility operational.
Historical Preservation and Environmental Impact
In historical preservation, 3D laser scanning serves as a digital insurance policy. Terrestrial scanners can capture the intricate carvings of a 19th-century facade without touching the fragile stone. This millimeter-accurate record guides future restoration efforts.
Environmental engineering also relies on these advanced land survey techniques. Scanning shorelines allows scientists to monitor erosion with incredible granularity. Monitoring these changes requires the highest grade of topographical survey equipment to ensure even the smallest shifts in elevation are recorded. When environmentalists ask what tools a land surveyor uses to combat climate change, they are looking at digital twins that allow for precise flood modeling and habitat restoration planning.
Urban Planning and the “Smart City”
The transition toward “Smart Cities” is built on high-density spatial data. Urban planners utilize 3D city models to simulate traffic flow and air quality. When evaluating topographical survey equipment for large-scale zoning changes, planners utilize LiDAR-equipped drones to capture entire city blocks. This data is then fed into AI-driven software that provides a real-time inventory of urban assets.
This level of detail is critical for infrastructure upgrades. For example, a 3D model can identify optimal line-of-sight positions for 5G antennas. By applying these land survey techniques, municipalities can move toward a more automated, data-driven approach to city management.
Future Trends: SLAM and AI
The future of land survey techniques lies in SLAM (Simultaneous Localization and Mapping). This allows scanners to track their position while moving through a space without fixed targets. Coupled with Artificial Intelligence that recognizes objects within a point cloud, the speed of 3D modeling is set to increase exponentially.
In the next decade, topographical survey equipment will involve autonomous drones and robotic dogs that scan job sites daily. This shift toward automated reality capture will allow engineers to focus more on high-level analysis and design. Utilizing modern topographical survey equipment will become more about software integration than hardware operation.
Frequently Asked Questions
How accurate is 3D laser scanning?
Typical accuracy ranges from 2mm to 10mm. This precision is essential for modern land survey techniques and ensures that new construction fits perfectly with existing structures.
What tools does a land surveyor use for 3D scanning?
A surveyor uses a 3D laser scanner, high-stability tripods, reflective targets, and GNSS receivers. They also utilize high-powered computers for processing millions of data points using advanced topographical survey equipment.
Is 3D scanning considered a topographical survey?
While 3D scanning can be used to create a topographical map, it is generally much more detailed. Traditional topographical survey equipment might capture hundreds of points on a site, whereas a laser scanner captures millions.
